Extenderbolt
The fight against steering play is a constant topic with tractors. Working in the fields is demanding. After just 500 working hours, the steering cylinder bolts can cause the axle joints to wear out. Then the steering has play. Simply using a normal steering bolt is of little use. After a short time, the play starts all over again.
The LT EXTENDERBOLT is a small bolt that achieves great things and can be installed in record time. It permanently solves the problem of steering play. Therefore, this material replacement is actually not a repair, but rather an update. When tightened, the conical middle piece presses the softer sleeves into the axle joint eyes, filling up to 1 mm of void.
The application area of the LT Extenderbolt is very large. In addition to vehicle steering, the LT Extenderbolt is used in articulated steering of wheel loaders, construction machinery, and other technical applications.
LT-Extenderbolt
With a diameter of 15–90 mm
The LT-Extenderbolt is a Swiss quality product and verified by TÜV Austria.
TÜV Austria regularly audits Bruno Lehmann AG and verifies that a quality management system is maintained in accordance with DIN EN ISO 9001:2008.
Accordingly, Bruno Lehmann AG is authorised to manufacture and distribute steering parts for tractors and construction machinery. The LT-Extenderbolt is delivered with the parts certificate.
Which extension bolt is right for your application?

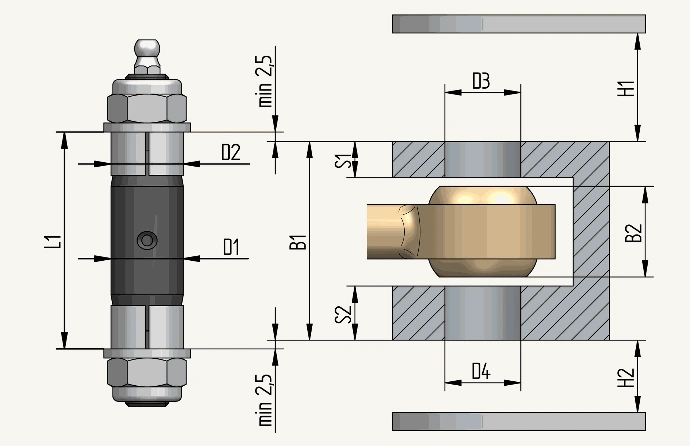

LT-Extenderbolt Through Hole

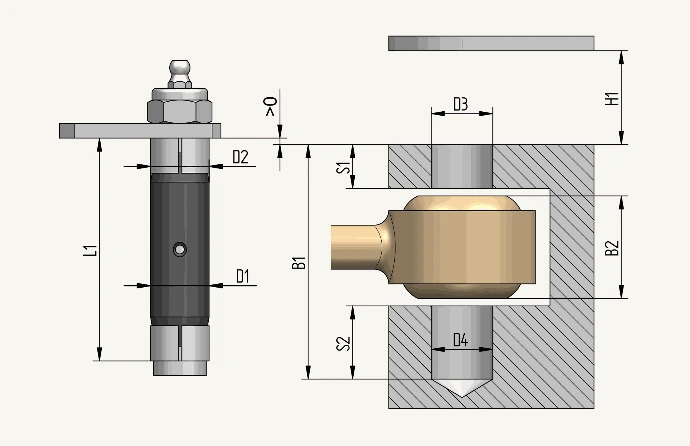

LT-Extenderbolt Blind Hole

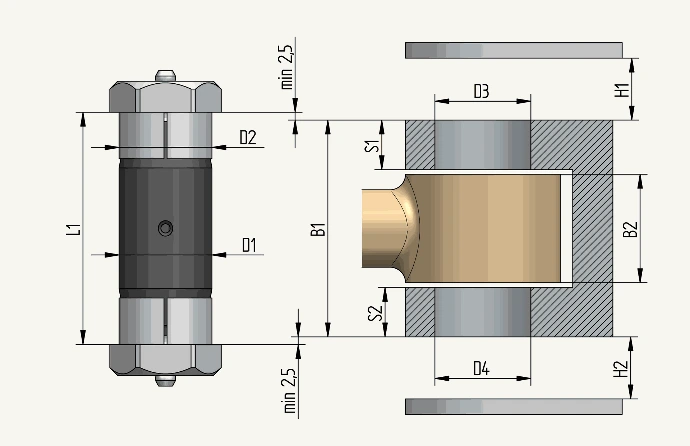

LT-Extenderbolt Short
Inquiry Form
LT-Extenderbolt
Your Dimensions
Send us your desired dimensions. Please fill out the form.
Search & Construct
We check your details. If we do not have a suitable LT extender bolt, we will construct it for you free of charge.
Offer & Order
You will receive an offer from us with a binding delivery date. You can easily place the order online.
Deliver & Assemble
We deliver your order worldwide. The only thing you need to do is assemble the LT extender bolt.
