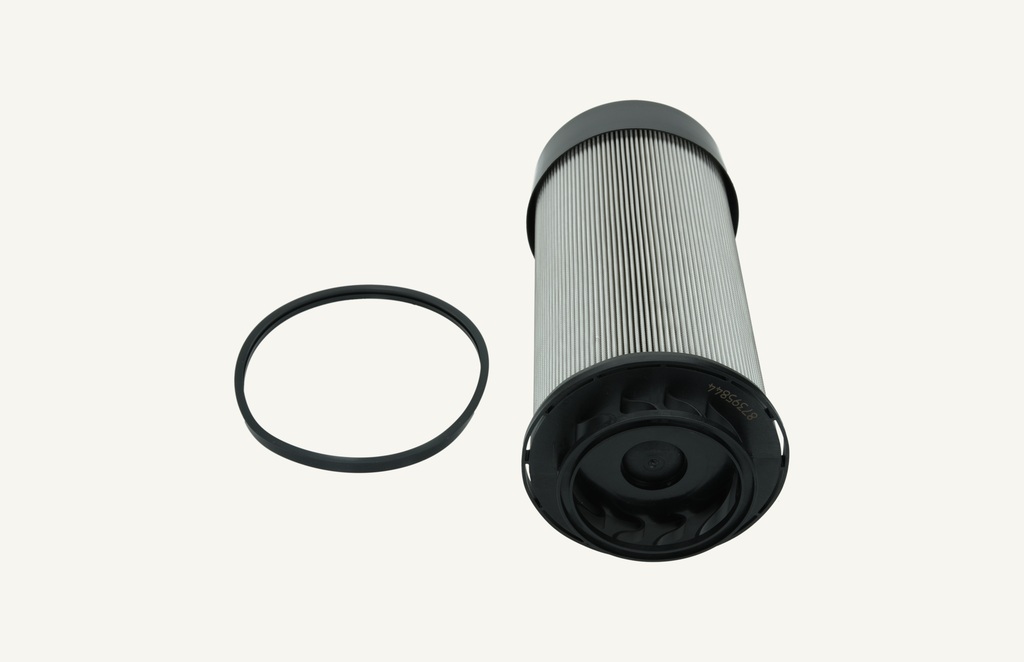

Hydraulic filter 148x325mm 32micron

LT part number: 1014612
Original item number: 87708150
Article specification:
Brand: CNH
Synonyms: 47617638 47617642 87395844 N87708150 SH52271
Tags: T6 T7 T7000 6215CVT 6230CVT Puma 115 T6000 T6020 T6040 T6060 6130 CVT 6185CVT 6205CVT T6010 Puma CVX 225 Maxxum 100 T7070Auto-Command

CHF 263.00

CHF 263.00

excl. VAT
Available

    This combination does not exist.

    Units of Measure: Units
     Add to basket

    Filter type: Oil filter

    Product information:

    Service information
    Before changing the main filter cartridge, the vent valve red must be loosened.
    This allows air to flow into the oil filter so that most of the oil can flow back into the hydraulic system.
    can flow back into the hydraulic system.
    Remove the plug at the bottom, spanner size 19mm, so that the remaining oil can flow out.
    Loosen the filter cover with a 41mm socket spanner 45°.
    (The cover has a normal right-hand thread)
    When reassembling, lightly oil the sealing ring of the cover and tighten it 45° until the arrow marks match.
    fit together.
    Do not forget to screw in the red vent valve!

    Service Bulletin 15.02.2017
    The long hydraulic filter 87708150 has been replaced by the shorter 47715391.
    The shorter hydraulic filter provides better supply to the steering oil pump and reduces intake noise.
    To install the shorter hydraulic filter, the suction filter insert 47715390 must be installed once.

    The conversion is intended for the following tractors
    17/16x16 transmission and CCLS hydraulic oil pump (Closed Center Load Sensing)
    T6.120 T6.125 T6.140 T6.145 T6.150 T6.155 T6.160 T6.165 T6.175 T6.180
    T6010 T6010Delta T6010Plus T6020 T6020Delta T6020Elite T6020Plus
    T6030 T6030Delta T6030Elite T6030Plus
    T6040 T6040Elite
    T6050 T6050Delta T6050Elite T6050Plus
    T6060 T6060Elite
    T6070 T6070Elite T6070Plus

    Fitted from the following serial number
    T6000 Tier3 as of ZGBD01865
    T6.120-175 Tier4A as from ZGBD01865
    T6.125-180 Tier4B as of ZGED01518
