  4. Thermostat Air Conditioner Baskurt

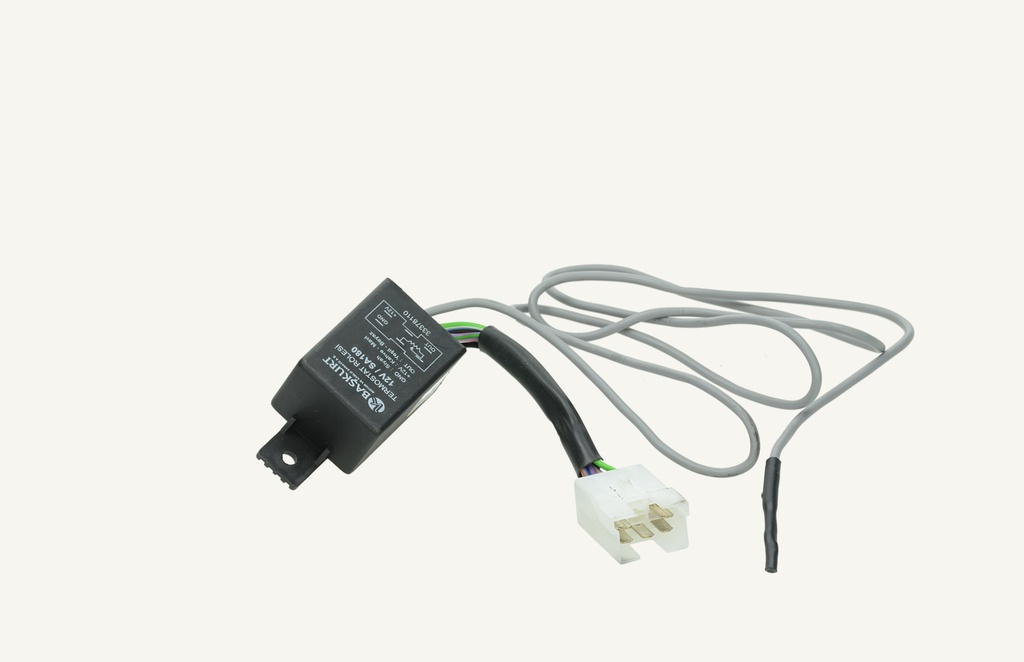

Thermostat Air Conditioner Baskurt

LT part number: 1013545
Original item number: 84402860
Article specification:
Brand: CNH
Synonyms: 38000178 81865558 82024945 82034877 F0NN19618AB N84402860
Tags: Ford60 TDD 5640 6640 7740 TS100 TS110 TS115 8360 8560 M135 M160 TM125 TM135 TM140 TM165 TM120 TM130 TM155 TM175 TM190 TD5000 TM115 7840 8240 8340 TS90 8160 8260 M115 M100 Ford40

CHF 122.20

CHF 122.20

excl. VAT
Available: 2.0 Units

    This combination does not exist.

    Units of Measure: Units
     Add to basket
    Product information:

    Air conditioner does not cool due to malfunction of relay
    Symptom
    Air conditioner does not cool.
    How to test the air conditioner thermostat relay?
    Solution
    The pin assignment of the air conditioner relay (part number 84402860) is necessary for troubleshooting.

    See the attachment. It contains:

    The pin function of the air conditioning relay
    An internal wiring diagram
    A diagram showing the control logic from the relay. The relay has an input from the temperature controller potentiometer and the evaporator temperature sensor. These inputs control the power output to pin 1 to the A/C compressor clutch.
    Pin assignment of the relay connector shown in the appendix:

    Pin 1 - power supply to the air conditioner
    Pin 2 - not connected
    Pin 3 - +12 supply to relay
    Pin 4 - temperature controller potentiometer
    Pin 5 - temperature controller potentiometer
    Pin 6 - Ground

     Checkout
