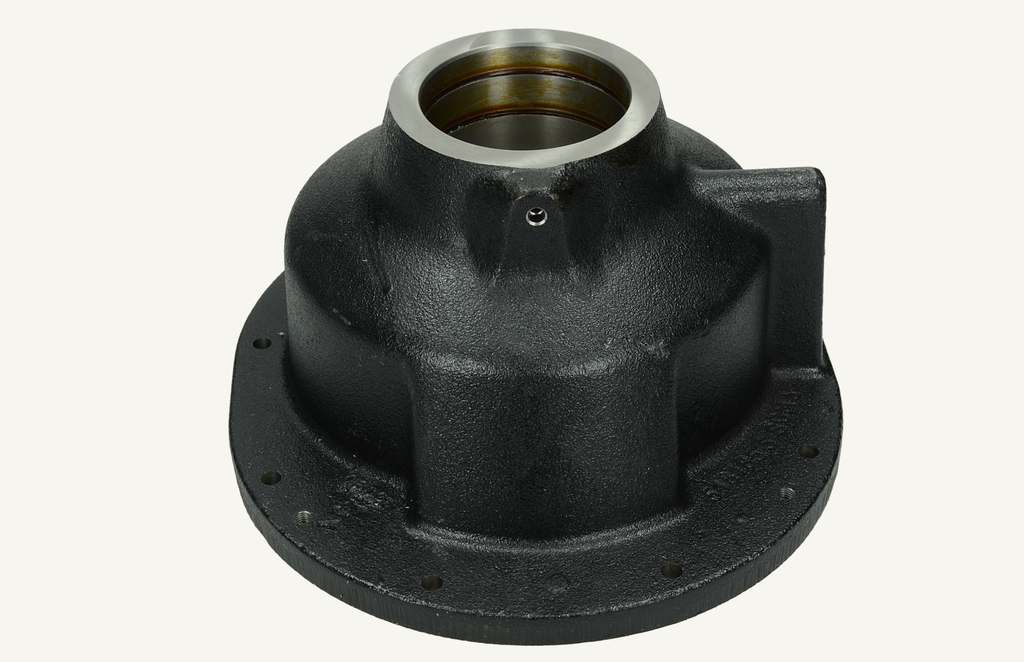

Gearbox input housing Bearing seat 90mm

The transmission and PTO have recently stopped running without an error code being displayed in the analogue digital instrument cluster (ADIC).
The splined connection of the drive shaft and Powershuttle clutch housing has worn prematurely and therefore has no drive.
This symptom mainly occurs in an operating range of 700 - 1500 operating hours, but can also occur after very few operating hours (less than 100 hours).
Premature wear of the splines is caused by:
Poorly machined dowel pin holes on the drive shaft bearing cover, resulting in misalignment of the drive shaft to the Powershuttle clutch housing profile.
Missing dowel pins on the front transmission spacer.
If the above symptom is detected and worn drive shaft and clutch housing teeth are found, the following procedure should be followed:
Replace all parts affected by wear such as drive shaft (part number 84470224) and clutch housing (part number 5181843).
Check for the two dowel pins (part number 4988170) on the front gearbox spacer clutch bell (part number 84488918), order and fit them if required.
Replace the drive shaft bearing cover and order a new cover (part number 5181856) .
Note: The new bearing cover from Spare Parts Logistics is supplied without the ball (part number 1116955) fitted. Either the ball from the old cover must be reused or a new ball must be ordered from Spare Parts Logistics.

The correctly machined drive shaft bearing cover was introduced in production from the following serial number:
ZHJM02111from 16 March 2017.

1x Output shaft 84470224
1x Clutch bell 5181843
1x Cover 5181856
1x Ball (if required) 1116955
2x Dowel pin (if required) 4988170
