2. Shop
  3. Windscreen wiper motor 12V 110°

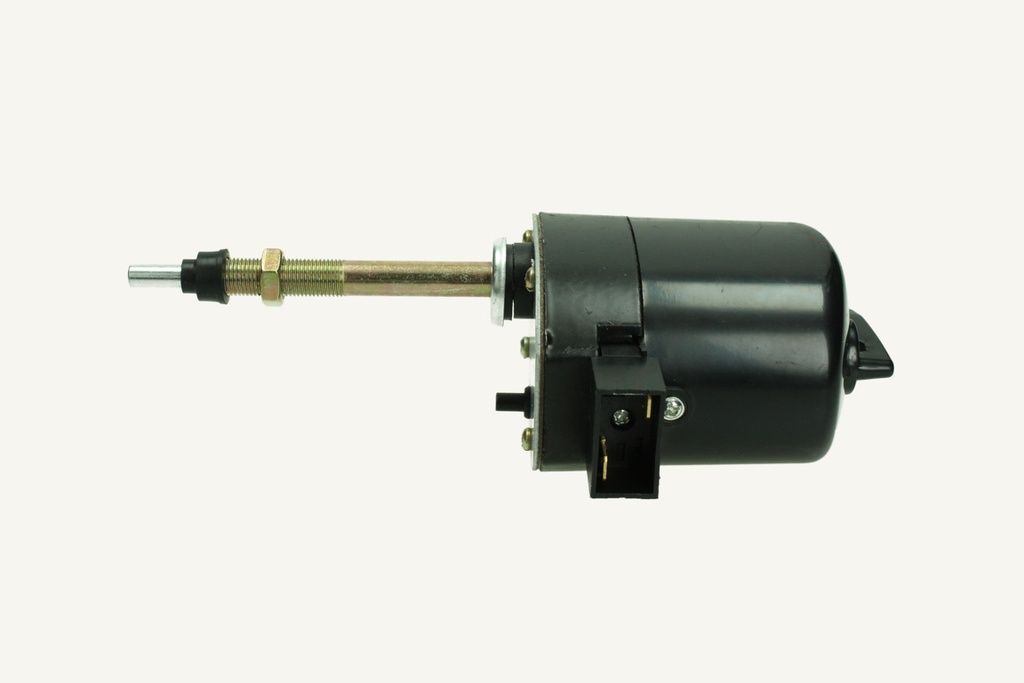

Windscreen wiper motor 12V 110°

LT part number: 1015577
Original item number: 6-250.12.490
Article specification:
Brand: LT
Synonyms: 6-250.12.290 6-250.12.445 6-250.12.450 625012290 625012445 625012450 E625012450 625012430 6-250.12.430 6-25012430 6-25012450 6-250.12.490 625012490 6-25012490 625012430 6-250.12.450 72101013 6-250.12.430 625012430 S.35428
Tags: Polytrac 50 Jakob Kabine A582 AS56 AS446 CX722 CX733 CX833 KK65 AS59 KK67 AK272 M340

CHF 98.00

CHF 98.00

excl. VAT
Available: 5.0 Units

    This combination does not exist.

    Units of Measure: Units
     Add to basket
    Product information:

    Connection thread M10x1.00x84mm
    Wiper shaft 6x103mm
    Clamping range 45-70mm
    New with retaining bolt at the bottom. Depending on the application, grind away the retaining bolt or drill an additional hole 5mm at the fixing point (bolt 5mm serves as anti-rotation lock)
    The M10x1.0 connecting thread and connecting plate must be removed for shortening. Shorten to the desired length, deburr and clean! And remove the thin guide bush from the sawn-off part with a suitable mandrel and reinsert, lubricate the bush with grease. The axle shaft must be 15 mm longer than the connecting thread.
