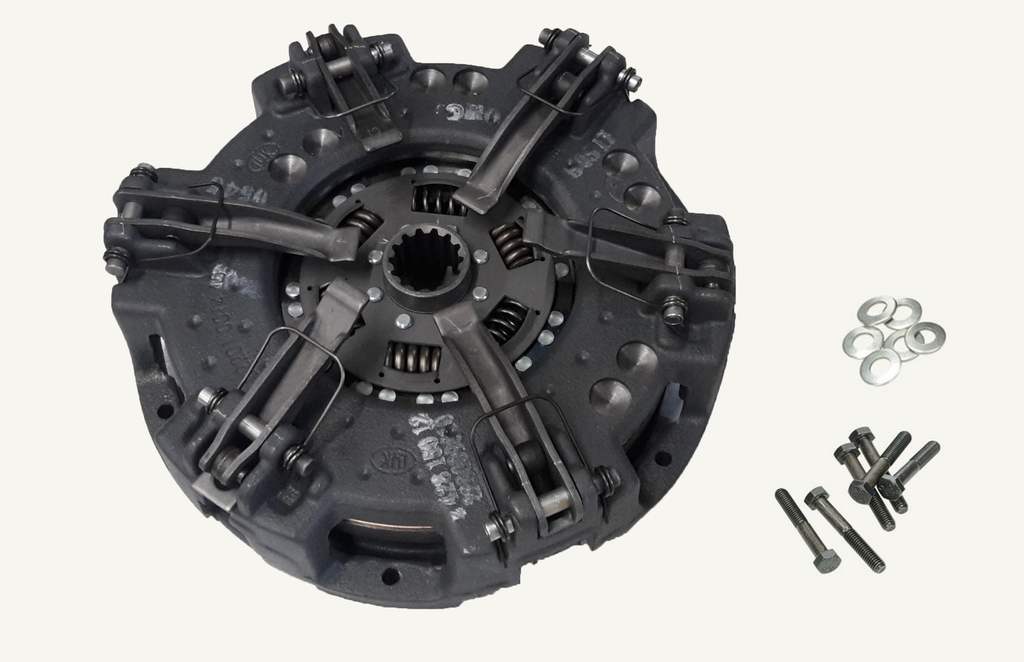

Coupling complete Ceramic LUK 11 inch Reinforced version

LT part number: 1002615
Original item number: 47512400
Article specification:
Brand: Schaeffler
Synonyms: 228009810 228007712 5158606 5162897 E05162900 228010830 5145709 5121603 5122716 4986595 5162900 05162900 5145710 5150646 5193337 2280098100 5092792 2280098100
Tags: 570 580 670 780 566 666 766 55-66 60-66 65-66 70-66 80-66 88-93 88-94 65-90 70-90 80-90 82-94 55-66S 60-56 60-66S TD55D TD65D TD75D TD85D 70-56 70-66S 80-66S 82-93 55-90 60-90 4230 4030 4430 82-86F 72-86F 82-86LP 72-86LP Ford 4030 480 - 640 55-56DT 65-66DT 70-56DT 80-66DT 82-93DT 82-94DT 88-93DT 88-94DT 70-66DT

CHF 653.25

CHF 653.25

excl. VAT
Available: 1.0 Units

    This combination does not exist.

    Units of Measure: Units
     Add to basket
    Product information:

    Outside diameter of driving clutch = 280 mm 11".
    Internally centred 300mm
    Outside diameter 325mm
    6 hole 8mm TK312mm

    New design with recess for better cooling.
    LT sells only the strongest version of this type with 6 pairs of pads.
    Weaker LUK clutches 228009810 and 228007712 have 5 pairs of pads).
    If springs are worn out, Luk recommends to check injection system or avoid extreme underdriving.
    Rocker arm height 98/123mm measured on friction surface (Already adjusted on new clutches)
    Flywheel distance 2mm (screw surface 2mm lower than friction surface)
    Attention:The new couplings have shorter screws !
    old = 16045131 M8x95
    new=14307931 M8x50
    Tightening torque 25Nm
